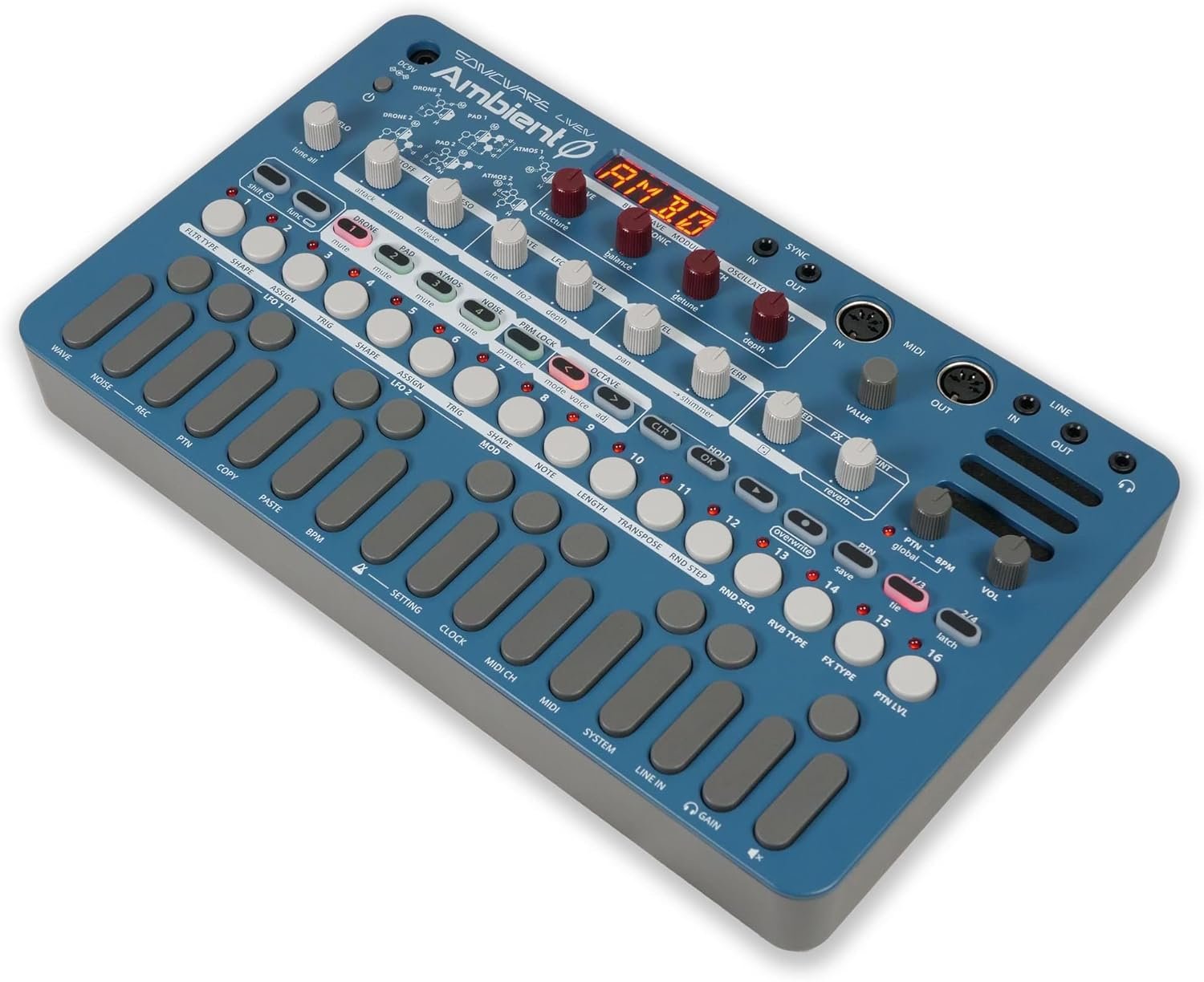

Immersive Ambient Generator
Specifications
Main Features
Blendwave Modulation Synthesis: 4-layer structure—Drone, Pad, Atmos (6 structures x 32 waves), Noise (1 structures x 8 waves, 8 sec stereo sampling)Amp envelope, filter, 2 LFOs, arpeggiator per layer9 lush reverbs with individual shimmer and reverb sends, plus 6 types of diverse master effectsEach layer has sequencer—64 steps × 128 patterns, 64 presets Overwrite Rec, Parameter Lock, Note Probability, Randomize7 different tuning systems per pattern (Supports master tuning from 410Hz to 470Hz)

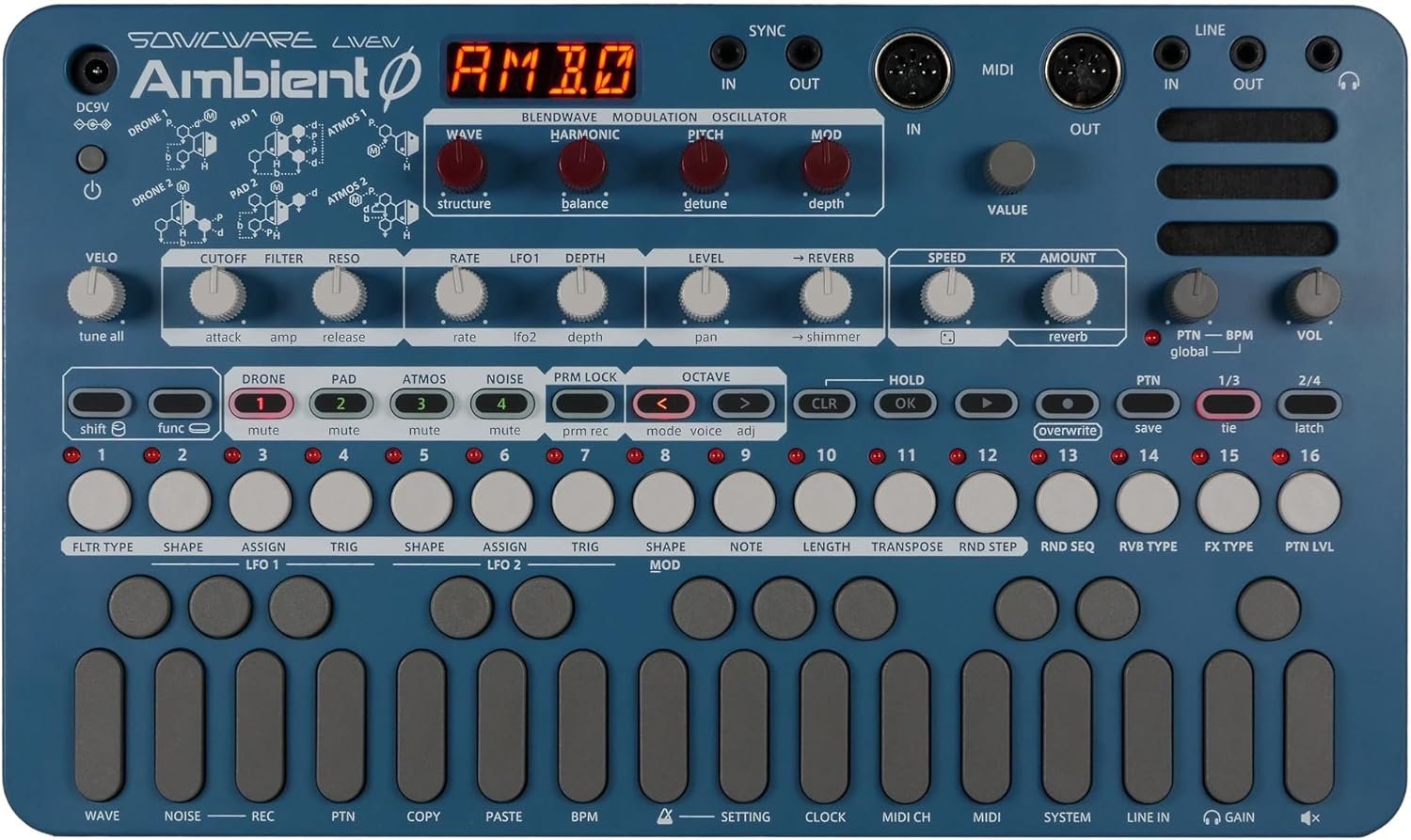

Keyboard: 27 keys with a hold function Knobs: 15 physical control knobs, and 1 encoder knob Audio in: LINE IN (stereo 3.5mm mini-jack) *Compatible with Teenage Engineering Pocket Operator Series SYNC IN Audio out: Stereo line out (stereo 3.5mm mini jack), Headphone out (stereo 3.5mm mini jack) *Compatible with Teenage Engineering Pocket Operator Series SYNC OUT, Built in speaker Interfaces: MIDI IN connector (5-Pin DIN type), MIDI OUT connector (5-Pin DIN type), SYNC IN jack (monaural 3.5mm mini jack), SYNC OUT jack (monaural 3.5mm mini jack) Power supply: 6 AA batteries x 6 (Battery life – Alkaline: approx. 6 hours, Lithium: approx. 10 hours) Or 9V DC output AC adapter (Current: 1A or greater, Plug Type: EIAJ3 Standard, Inner Diameter: 1.7mm, Outer Diameter: 4.75mm, Polarity: Center +) *The AC adapter and batteries are not included.

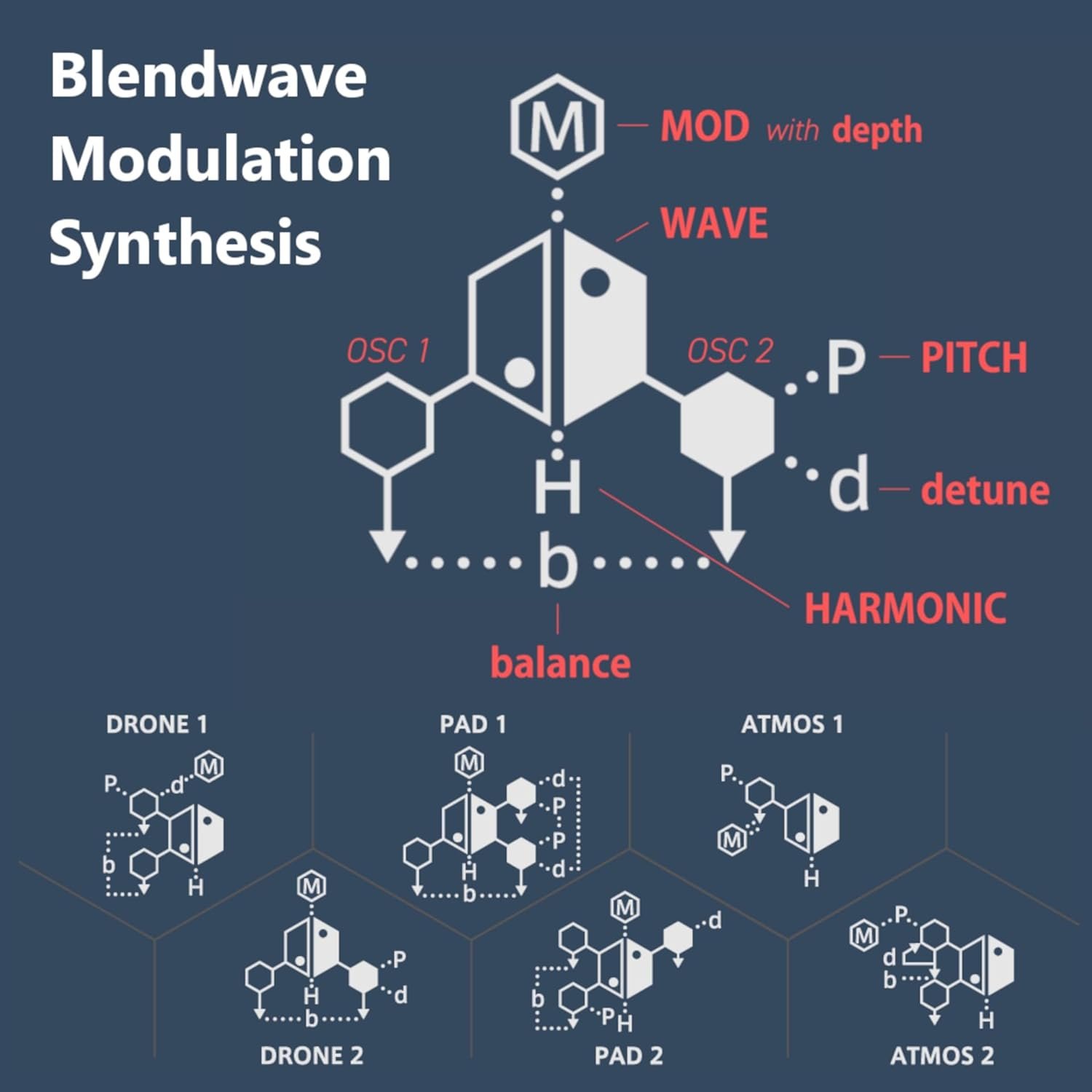

4-Layer Ambient Generator with Blendwave Modulation Synthesis Drone, Pad, Atmos, and Noise layers merge to create evolving soundscapes. Newly developed Blendwave Modulation Synthesis (6 structures x 32 waves) delivers undulating, fluctuating tones ideal for ambient music.
Noise Layer with sampling capability Noise layer with 8 nature sounds with noise blending, pitch control, and modulation to add unique spatial character, plus up to 8 s stereo sampling from LINE IN for custom textures. LINE IN can also be selected on the Noise layer for filter/LFO processing.
Microtonal Sound (7 Tunings per Pattern) Choose Pure Intonation (Major/Minor), Pythagorean (Sharp/Flat), Solfeggio Frequencies, or Equal Temperament; master tuning adjustable 410–470 Hz.
Deep Effects for Space & Motion 9 lush reverbs (with per‑layer reverb and shimmer sends) and a master effect unit: Tape Delay, Reverse Delay, Overdrive, Bit/Rate Crush, Tilt EQ, Stereo Chorus. Effects can also process Line in.
Per‑Layer Sequencer for Evolving Patterns 64 steps × 128 patterns, 64 sound pattern palettes, real‑time or step input, Parameter Lock, note probability 25–100%, and random playback—each layer records performances and parameter changes over time.
Portable, Play Anywhere Battery‑powered with a built‑in speaker; designed to be used beyond the studio so the evolving tones blend with your environment.
