Specification
Frequency reponse: 10Hz-22KHz Wireless frequency band 5.8GHz Delay time <6ms Battery 3.7V/50mAh Transmission distance 15-20m/50-60ft Dimension 84*100*46mm/3.3*3.9*1.8in Charging note Please use the original charging cable! “Some phones” proprietary Type-C cable may not be compatible.
What should I do if I can’t charge the JW-06?
Please note that JW-06 does not support the use of fast charging cable or double C port charging cable, if charging can not be charged, it is recommended to change the data cable and try again!
What should I do if the signal cuts out！
Troubleshooting process: Away from interference – Full charge – Check the connection – Change frequency band – Ask questions to the seller.
（WARNING: Keep at least 3m away from Wi-Fi routers, Bluetooth devices & wireless mics to avoid interference）
How is JW-06 successfully paired?
Firstly, double-click receiver’s button
Secondly, double-click transmitter’s button
Finally, after about 2 seconds, both transmitter and receiver will turn blue to indicate successful pairing
How to solve the noise? Ansewer: Try to find the noiseless frequency band in a fully charged state.
1. Find the source of noise. Is the speaker, Active pickup or effect pedal? Please check
2. Stay away from interference such as phones, WIFI, and then switch the signal channel to try
3. Adjust volume electric guitar. Find the right volume not max
How can I check the battery power level of the JW-06?
1. Low battery – red light blinking.
2. Charging – transmitter and receiver red light blinking.
3. Fully charged – light off.

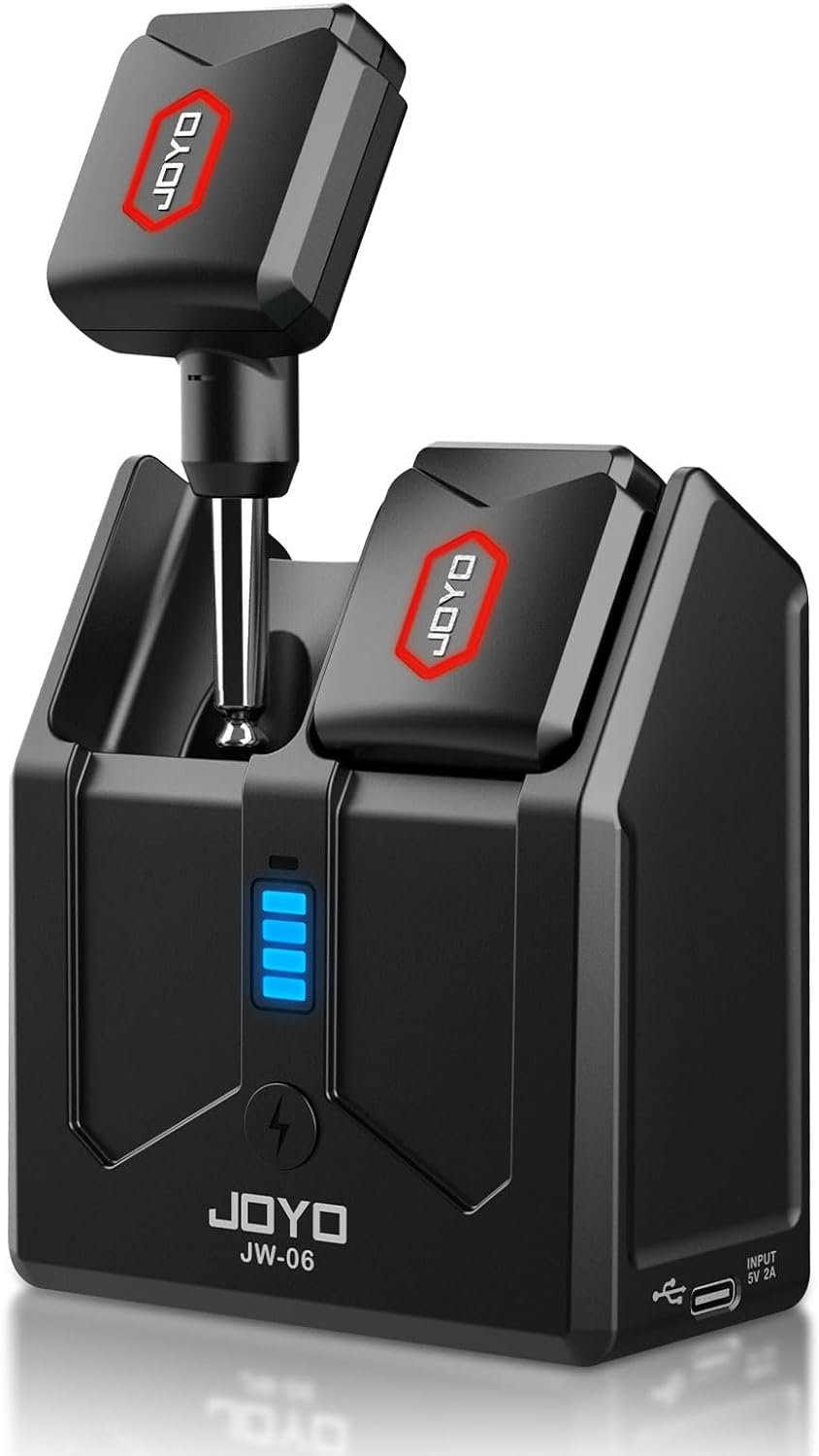

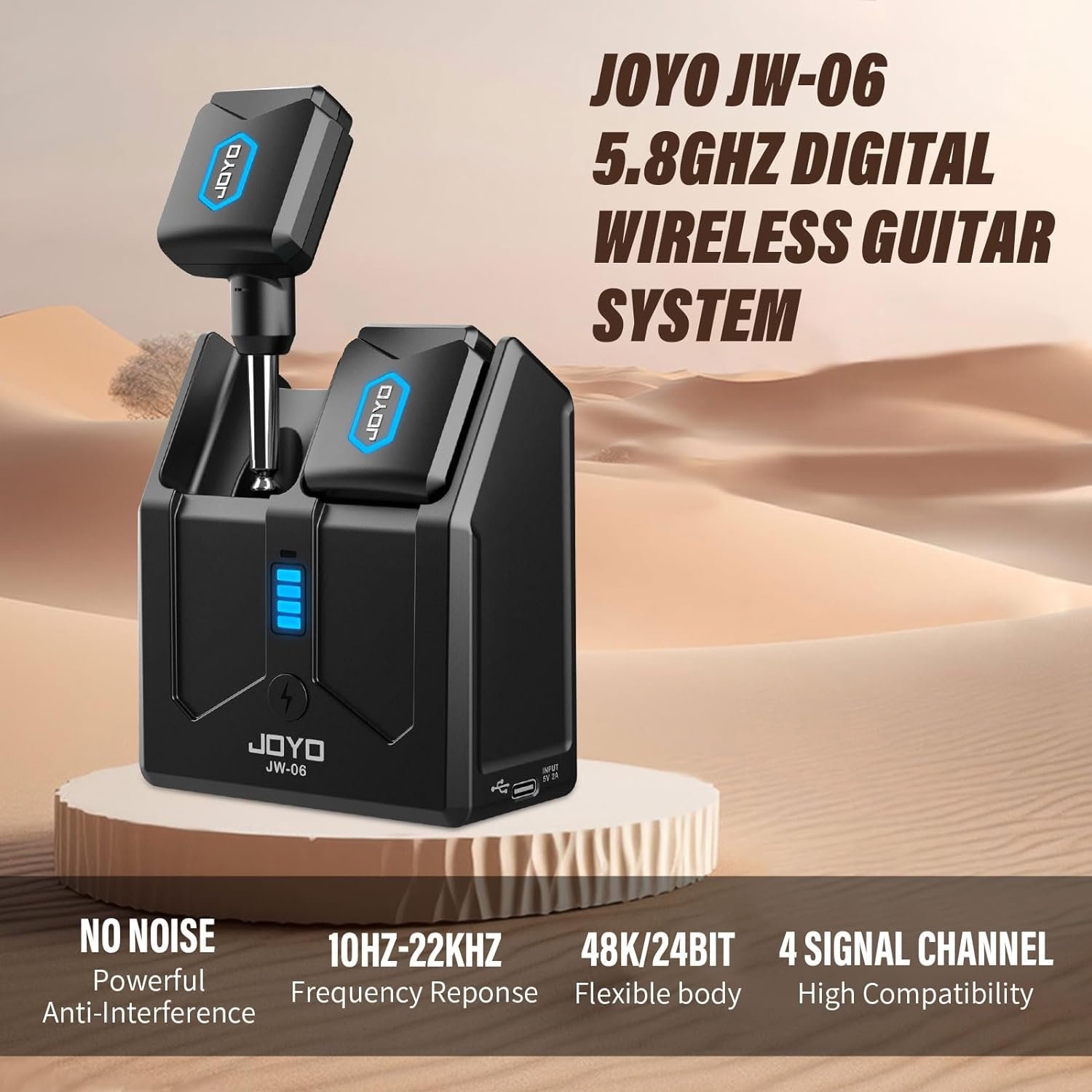

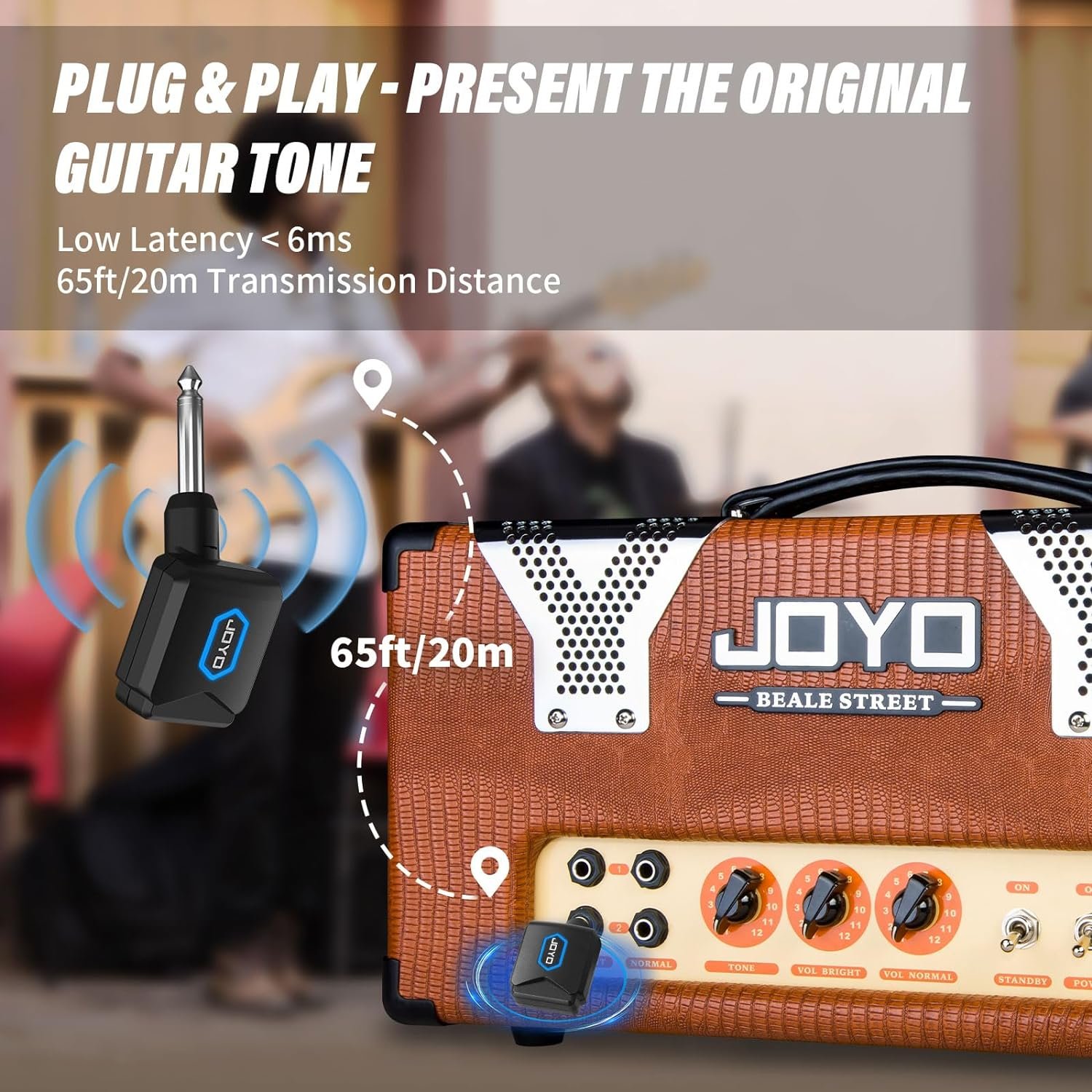

5.8GHz wireless guitar system delivers much clean and stable quality of original guitar sound with lower noise, lower latency and little interruption

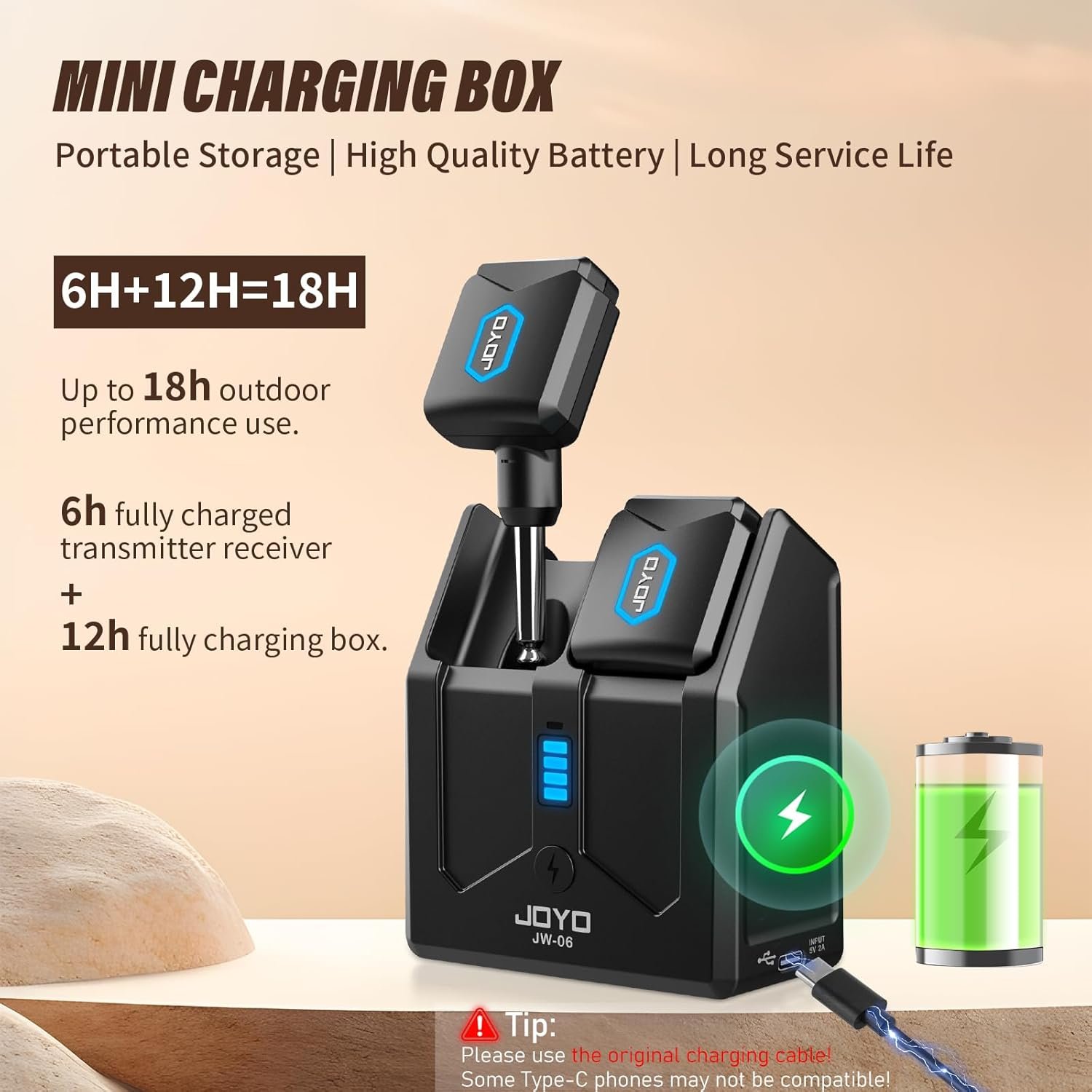

Portable innovative charging box design with long deep cycle life rechargeable battery can power wireless guitar device twice and up to 6hrs working after fully charged

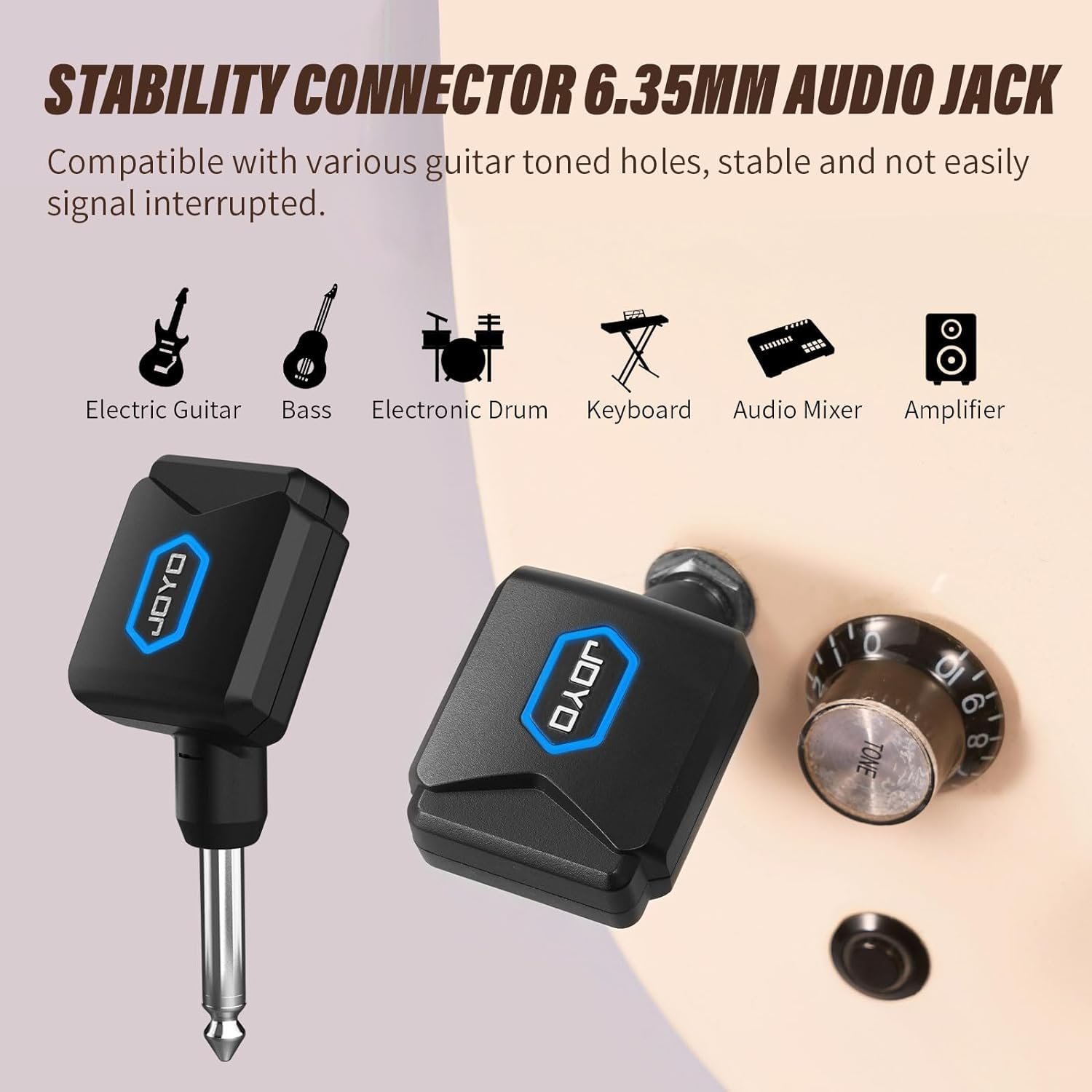

Specially connector shape design is compatible with most all electric guitar bass 6.35mm mono jacks and those with vibrato system, multiple effect pedals or various instruments
Easy to Pair. Double click the button of receiver, then double click button of transmitter for more than 2 seconds, when both indicators keep blue mean they’re paired successfully

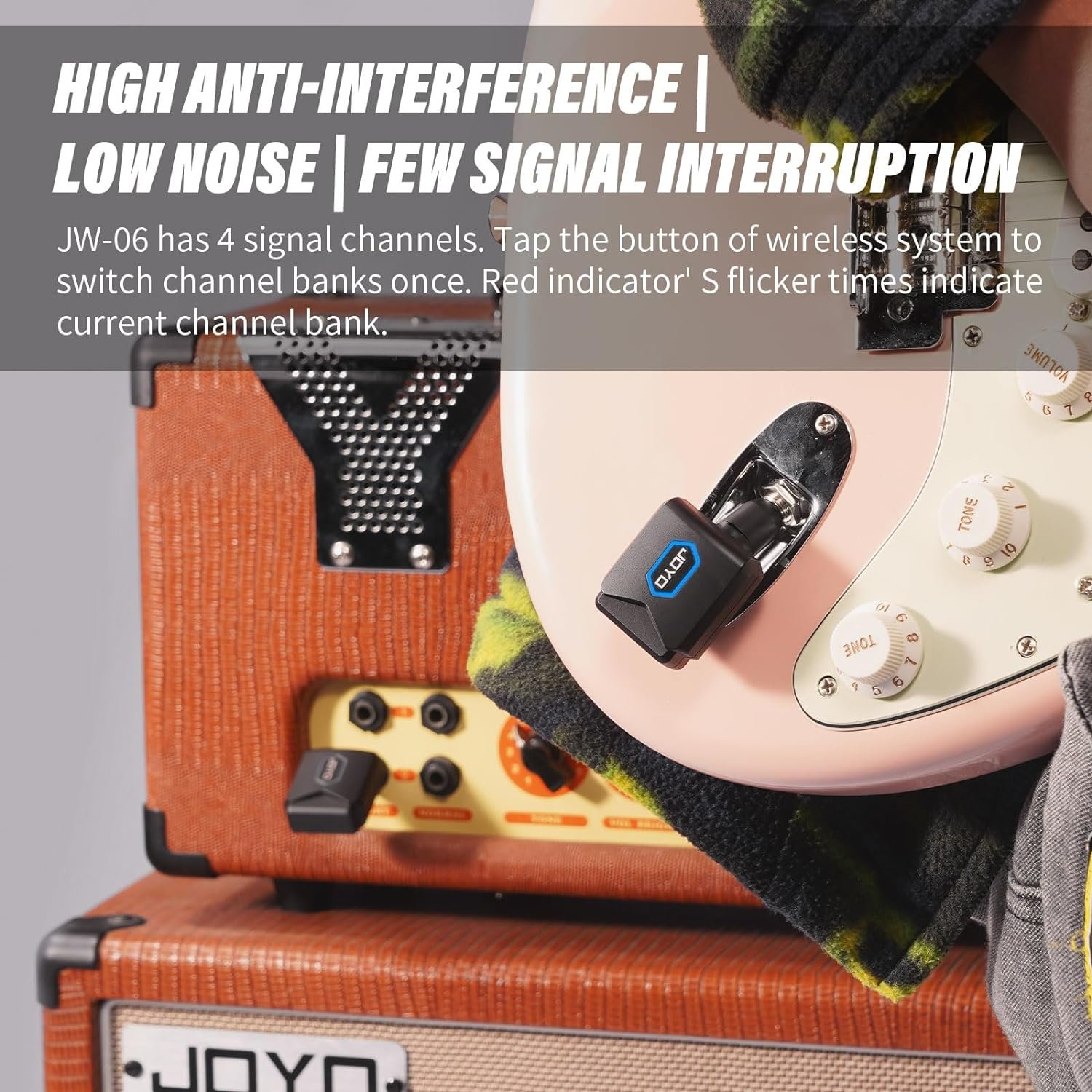

4 signal channels. The one transmitter can be simultaneously matched four receivers by one key to switch different signal channels to send audio
